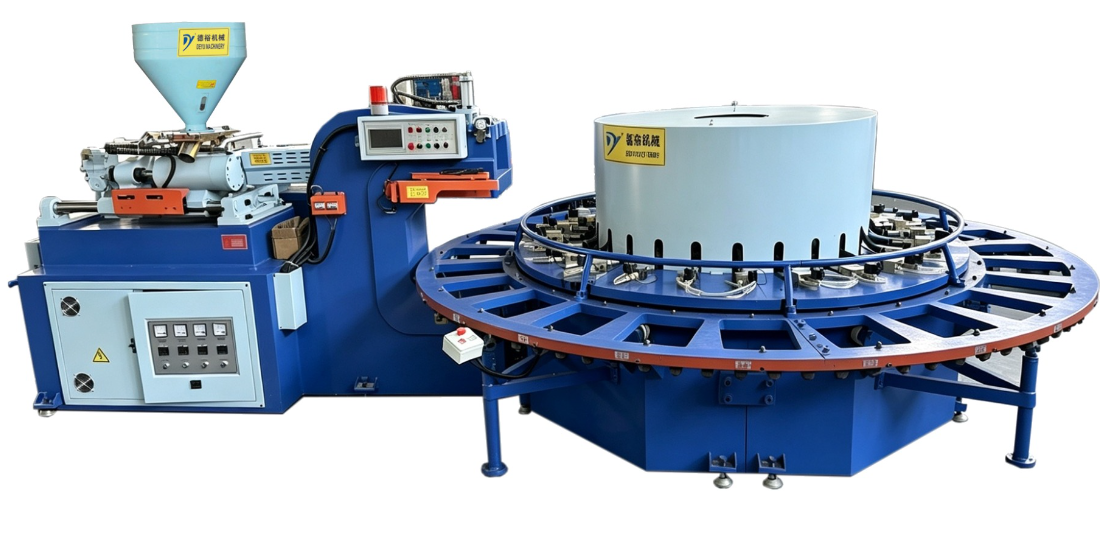

One Color PVC Sole Injection Machine with Vacuum Fabric
24-station one-color PVC sole injection machine with vacuum fabric system. 55T clamping force, Φ65 screw, 660 cm³/shot injection capacity, and 130 pairs/hour productivity.
- One-color PVC sole injection with vacuum fabric system
- 24-station rotary layout
- 55T mold clamping force
- Φ65 injecting screw with 660 cm³/shot capacity
- 130 pairs/hour productivity
- 480 × 320 × 180 mm mould dimension
- 31.5 kW total power
- 600 L oil capacity
Technical Specifications
| Model | DY-1124-VAC |
| Stations | 24 |
| Type | One-color PVC injection with vacuum fabric |
| Colors | 1 |
| Screw Diameter | Φ65 |
| Max Injection Capacity | 660 cm³/shot |
| Clamping Force | 55 tons |
| Max Injection Pressure | 890 kg/cm² |
| Productivity | 130 pairs/hour |
| Mould Dimension | 480 × 320 × 180 mm |
| Total Power | 31.5 kW |
| Machine Dimension | 5.8 × 4.7 × 2.175 m |
| Machine Weight | 6.5 tons |
| Oil Capacity | 600 L |
Applications
PVC soles with fabricVacuum fabric sole productionSingle-color PVC footwear solesSlippers and sandalsHigh-volume rotary production
