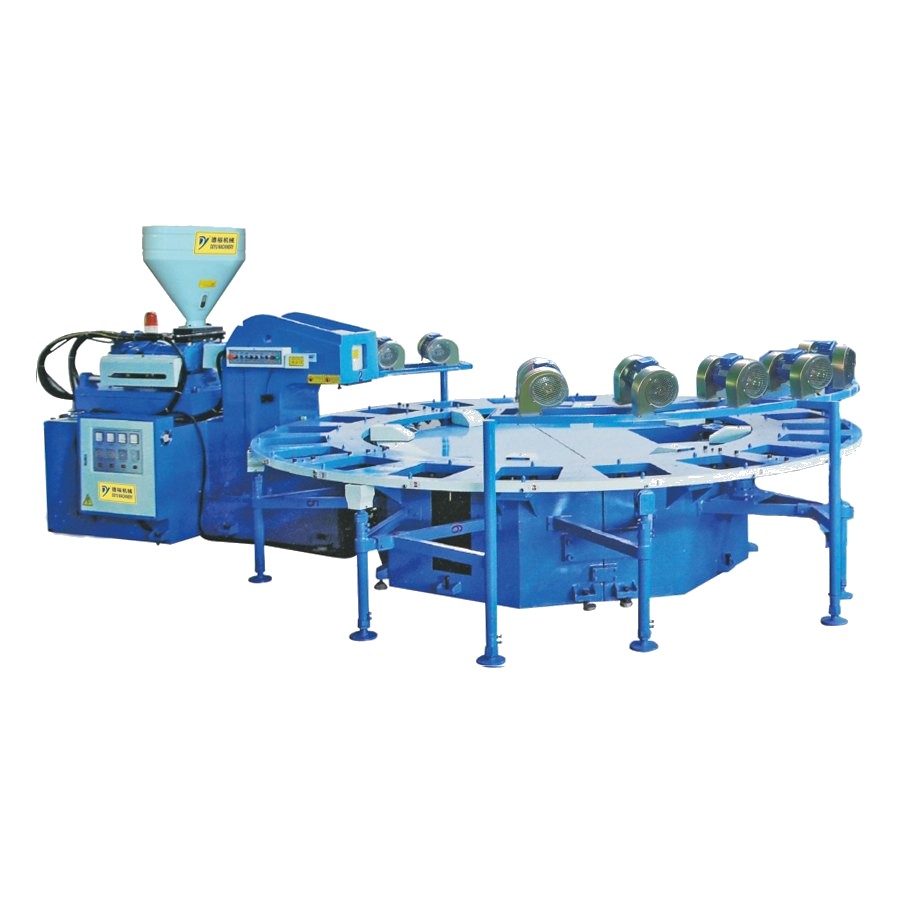

Full Automatic Single-Color Rotary Sole Injection Moulding Machine — 80-100T (PVC / TPR / TPU)
Medium-tonnage single-color rotary sole machine for PVC / TPR / TPU. One product family covering DY-1106 (6-station), DY-1108 (8-station) and DY-1112 (12-station) at 80-100T clamping. Up to 130 pairs/hour. Optional water-cooling.
- Rotary disc — 6 / 8 / 12 station options (DY-1106 / 1108 / 1112)
- Medium clamping force: 80-100 tons
- Materials: PVC / TPR / TPU (foamed or non-foamed)
- Up to 130 pairs/hour
- Large Φ65 screw on the 12-station (DY-1112)
- Optional central water-cooling for faster mould cooling
- Computer-programmed digital control · servo energy-saving (saves 30%+)
Teknik Özellikler
| DY-1106 / DY-1108 / DY-1112 | DY-1124E | |
|---|---|---|
| Clamping Force | 80-100 tons | 80 tons |
| Stations | 6 / 8 / 12 | 24 (rotary disc) |
| Material | PVC / TPR / TPU | PP (polypropylene) |
| Screw Diameter | Φ65 mm (DY-1112) | Φ65 mm |
| Max Injection Capacity | 660 cm³/shot (DY-1112) | 660 g/shot |
| Max Injection Pressure | 890 kg/cm² (DY-1112) | — |
| Productivity | Up to 130 pairs/hour | 130 pairs/hour |
| Cooling | Optional water-cooling | Water-cooling |
| Total Power | 31.5 kW | — |
| Machine Weight | — | 9 tons |
Uygulamalar
Men's shoe setsMid-volume PVC/TPR/TPU sole productionCasual & sports footwearOEM production
